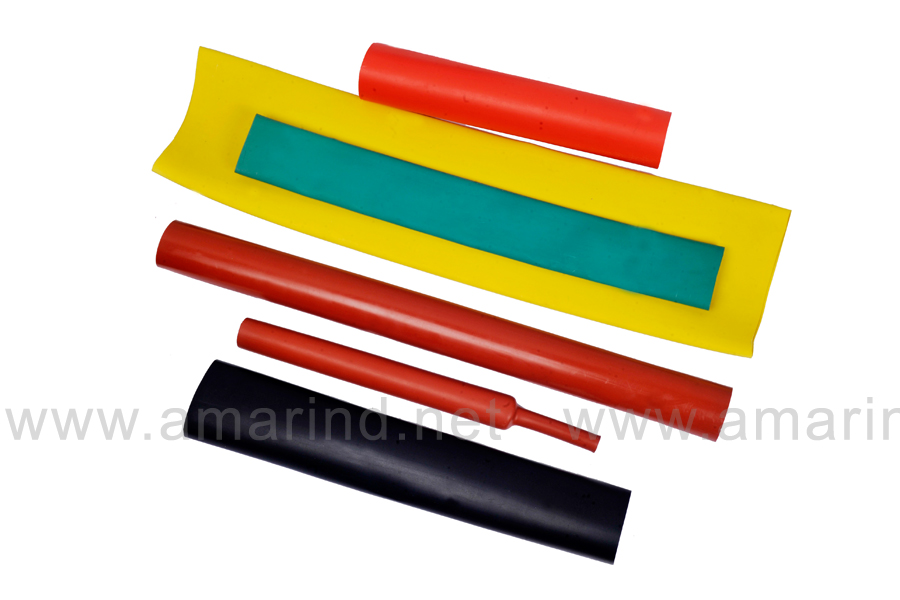

Heat Shrinkable Sleeves provide insulation enhancement to bus-bar systems up to 36kv and protect them against flashover and accidental induced discharge. The use of bus-bar tubing allows equipment designers the freedom to reduce air spacing between bus-bar, such as in manufacture of switchgear cabinets where space is at a premium.Heat Shrinkable tubes are manufactured from high quality non-tracking, non-halogen, cross-linked based polymer which has excellent performance in high voltage environments & reduces the noxious and corrosive effects in fire situation.
Features
- Reduce Bus-bar clearance.
- Solve the problem of insulation among Bus-bar in Bus Duct.
- Halogen free, flame retardant.
- High dielectric strength.
- High resistance to tracking, aging & corrosion.
- It can be offered in constant length.
Technical Data
| Sr. No. | Properties | Value | Standard |
|---|---|---|---|
| Physical | |||
| 1 | Tensile Strength | 11 N/mm² (MPA)(min.) | ASTM D 412-06a |
| 2 | Ultimate Elongation | 450% (Min.) | ASTM D 412-06a |
| 3 | Longitudinal Change | -10% (Max.) | ASTM D2671 |
| 4 | Density | 1.15 ± 0.2 gm/cm³ | ASTM D792 |
| 5 | Hardness | 45 ± 10 Shore D | ASTM D2240 |
| 6 | Water Absorption | 0.5 % (max.) | ASTM D570 |
| Thermal | |||
| 7 | Accelerated Ageing for 120°Cfor 400 Hrs | ||
| Tensile Strength | 9 N/mm2 (Mpa) (min.) | ASTM D 412-06a | |
| Ultimate Elongation | 300 % (Min.) | ASTM D 412-06a | |
| 8 | Heat Shock (250oC for 30 Mins.) | No Cracking or flowing | ESI 09-11 |
| 9 | Shrink Temperature | 125°C | IEC 216 |
| 10 | Continuous Temperature limit | -40°C to + 110°C | IEC 216 |
| Electrical | |||
| 11 | Dielectric Strength | 23 KV/mm | ASTM D 412-06a |
| 12 | Volume Resistivity | 7.7 x 1015 Ohm.cm | ASTM D257 |
| 13 | Dielectric Constant | 5 (Max.) | ASTM D150 |
| Flammability | |||
| 14 | Flammability | Pass | UL-94 (V-1) |
Heat Shrink Bus Bar Sleeves for Electrical Insulation Protection
Heat Shrink Bus Bar Sleeves are designed to provide reliable insulation and protection for copper and aluminum busbars used in electrical power systems. These sleeves help improve electrical safety, reduce flashover risks and enhance long-term equipment reliability.
Suitable for Switchgear, Transformers and Substations

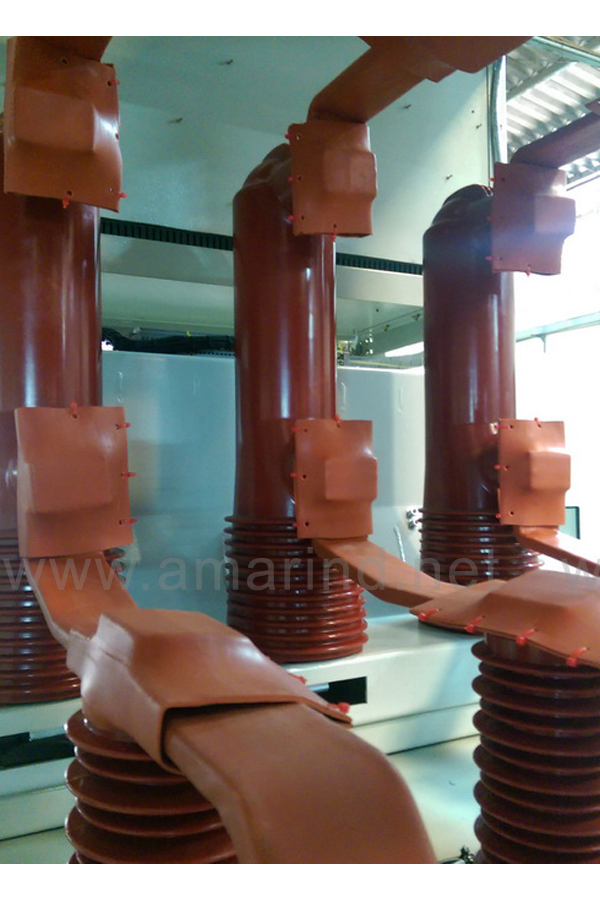

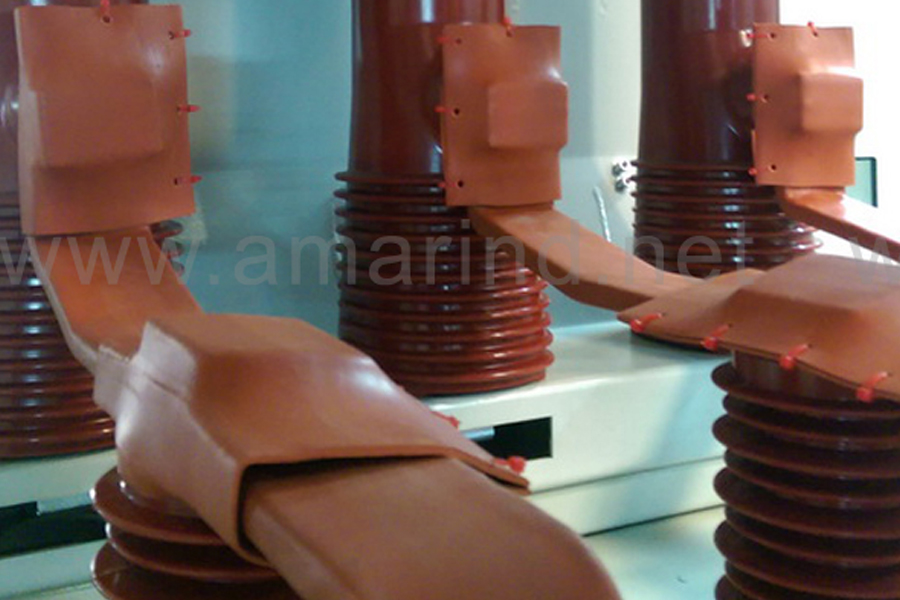

Heat Shrink Bus Bar Sleeves are widely used in switchgear assemblies, substations, transformers, distribution panels and industrial electrical installations where effective busbar insulation is essential for safe operation.
Enhanced Protection Against Flashover and Short Circuits
The sleeves provide a durable insulating barrier around busbars, helping reduce the risk of accidental contact, flashover and phase-to-phase faults while supporting improved operational safety.
High Performance Heat Shrink Insulation Technology
Manufactured using quality heat shrinkable materials, these busbar sleeves conform tightly to busbar surfaces after installation, providing dependable insulation performance under demanding operating conditions.
Applications Across Power and Industrial Sectors
Heat Shrink Bus Bar Sleeves are used by utilities, transformer manufacturers, switchgear manufacturers, EPC contractors, renewable energy companies and industrial facilities throughout India and international export markets.
Why Choose Amar Industries Heat Shrink Bus Bar Sleeves
Amar Industries delivers consistent product quality, technical expertise, customized solutions and reliable supply of electrical insulation products for critical power infrastructure applications worldwide.
Frequently Asked Questions - Heat Shrink Bus Bar Sleeves
What are Heat Shrink Bus Bar Sleeves used for?
Heat Shrink Bus Bar Sleeves are used to insulate and protect copper and aluminum busbars in electrical power distribution systems.
Why are Bus Bar Sleeves important?
Bus Bar Sleeves help improve electrical safety, reduce flashover risks and provide additional insulation for exposed conductive busbars.
Where are Heat Shrink Bus Bar Sleeves commonly installed?
Heat Shrink Bus Bar Sleeves are commonly installed in switchgear panels, transformers, substations, electrical distribution systems and industrial power equipment.
Can Heat Shrink Bus Bar Sleeves be used on copper and aluminum busbars?
Yes, Heat Shrink Bus Bar Sleeves are suitable for use on both copper and aluminum busbars depending on application requirements.
Do Heat Shrink Bus Bar Sleeves help prevent flashover?
Yes, Heat Shrink Bus Bar Sleeves help reduce flashover risks by providing an insulating barrier around busbars and exposed conductive surfaces.
Which industries use Heat Shrink Bus Bar Sleeves?
Heat Shrink Bus Bar Sleeves are widely used in power generation, transmission, distribution, renewable energy, industrial manufacturing and infrastructure projects.
Does Amar Industries export Heat Shrink Bus Bar Sleeves internationally?
Yes, Amar Industries supplies Heat Shrink Bus Bar Sleeves to customers throughout India and various international export markets worldwide.
Can Amar Industries provide customized Heat Shrink Bus Bar Sleeves?
Yes, Amar Industries can provide customized Heat Shrink Bus Bar Sleeves based on customer specifications, dimensions and application requirements.
