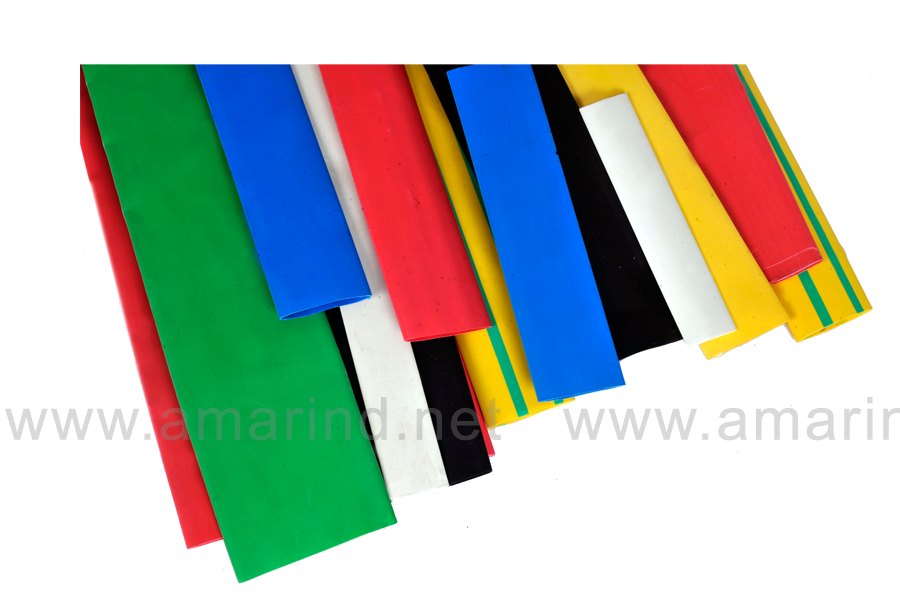

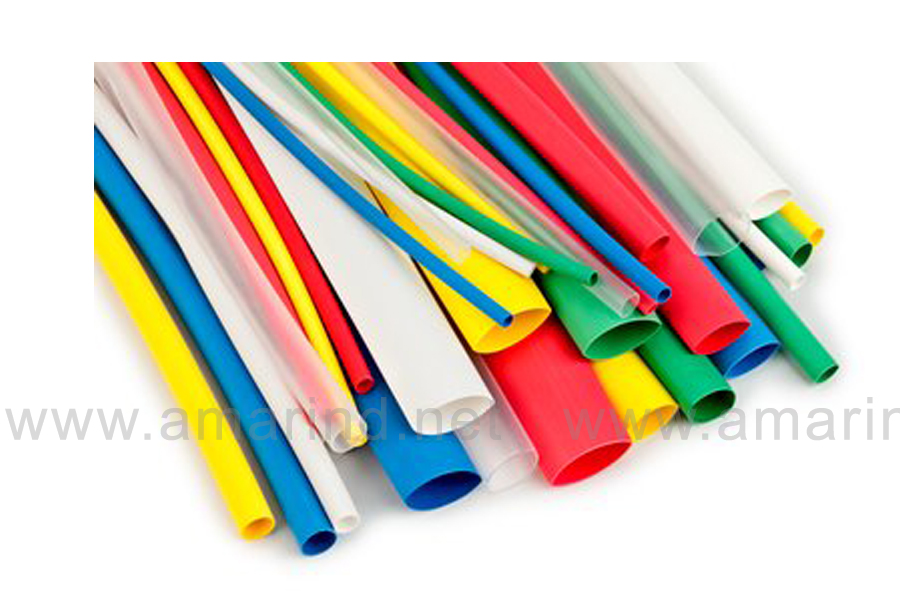

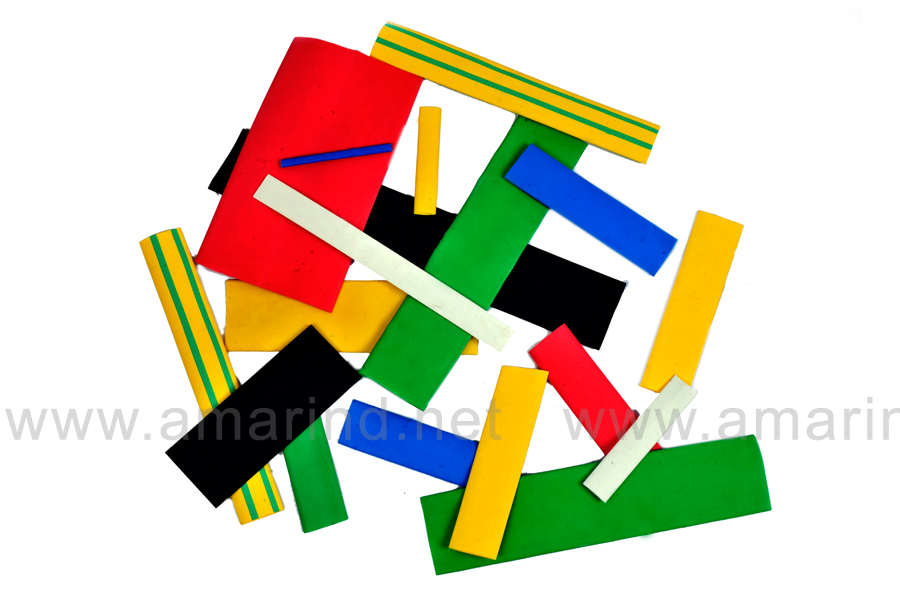

Thin Wall Bus-Bar Heat Shrink Tubes are manufactured from high quality radiation cross-linked Polymer based material. Thin wall Tubing is flame retardant and RoHS compliant. It’s extremely flexible with low shrinkage temperature. Thin Wall heat shrink tubing’s typical applications include: Insulation to Bus bar, Wire Identification, Wire Bundling, Mechanical Protection, Lightweight Harnessing, and Physical/Electrical Protection of Components.
Technical Data
| Sr. No. | Properties | Value | Standard |
|---|---|---|---|
| Physical | |||
| 1 | Tensile Strength | 8 N/mm² (MPA)(Min.) | ASTM D 412-06a |
| 2 | Ultimate Elongation | 150% (Min.) | ASTM D 412-06a |
| 3 | Water Absorption | 0.5 % (max.) | ASTM D570 |
| Thermal | |||
| 4 | Heat Shock (130oC for 30 Mins.) | No Cracking or flowing | ESI 09-11 |
| 5 | Shrink Temperature | 90°C | IEC 216 |
| 6 | Continuous Temperature limit | -40°C to + 110°C | IEC 216 |
| Electrical | |||
| 7 | Dielectric Strength | 600V - 12kV | ASTM D149 |
| 8 | Volume Resistivity | 1X1015 Ohm.cm | ASTM D257 |
| Flammability | |||
| 9 | Flammability | Pass | UL-94 (V-0) |
