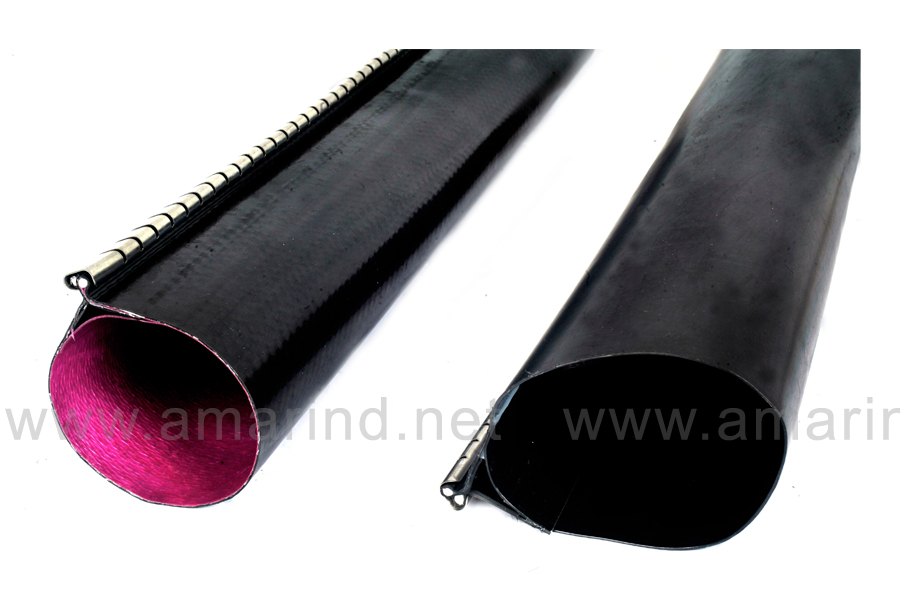

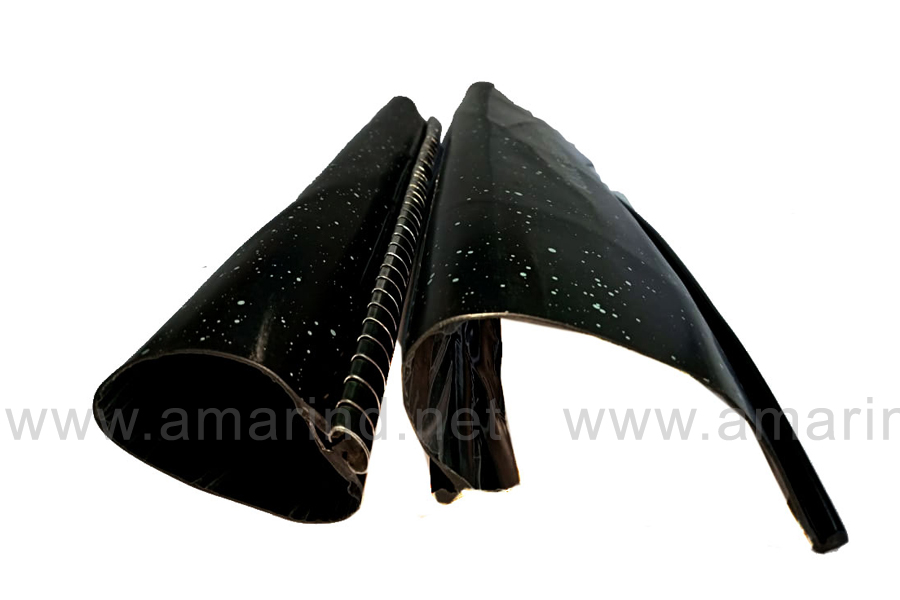

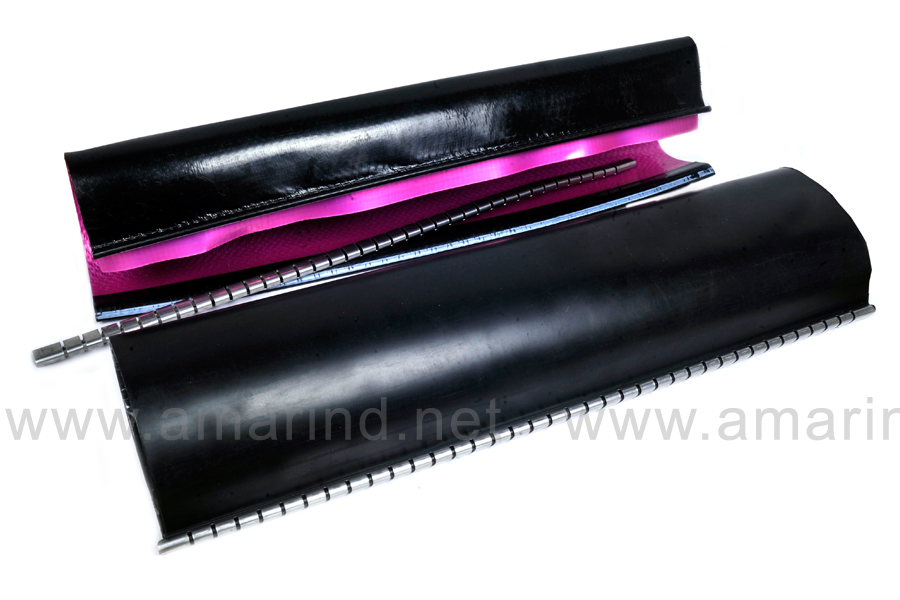

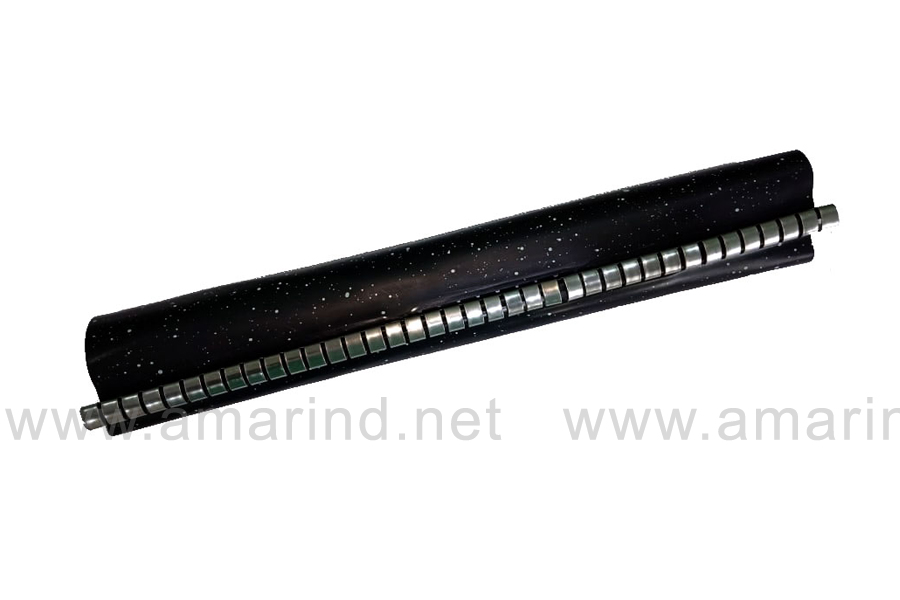

Heat Shrink Wrap Around Sleeve is a cross linked polyolefin 'tube' which is folded around the cable/pipe, zipped up with a stainless steel channel and then heat shrunk. It is also called as (Cable Repair Sleeve). Shut down of system not required for repair. Hot melt adhesive provides complete environmental sealing and insulation. High resistance to UV rays, chemicals, corrosion, fungus, etc.
Technical Data
| Sr. No. | Properties | Value | Standard |
|---|---|---|---|
| Physical | |||
| 1 | Tensile Strength | 15 N/mm² (MPA)(min.) | ASTM D 412-06a |
| 2 | Ultimate Elongation | 400% (Min.) | ASTM D 412-06a |
| 3 | Water Absorption | 0.2 % (max.) | ASTM D570 |
| 4 | Accelerated Ageing for 120°Cfor 168 Hrs | ||
| a. | Tensile Strength | 12 N/mm2 (Mpa) (min.) | ESI 09-13 |
| b. | Ultimate Elongation | 300 % (Min.) | ESI 09-13 |
| 5 | Dielectric Strength | 11 KV/mm. (Min.) | ASTM D149 |
| 6 | Flammability | Pass | UL-94 (V-1) |
Heat Shrink Repair Sleeves for Cable Restoration and Protection
Heat Shrink Repair Sleeves are designed to restore damaged cable jackets and insulation while providing reliable environmental sealing and mechanical protection. They help extend cable service life and improve operational reliability in electrical and industrial applications.
Effective Repair Solution for Damaged Cable Jackets
Heat Shrink Repair Sleeves provide a practical method for repairing damaged cable outer jackets caused by abrasion, environmental exposure, installation damage or operational wear. The sleeves help restore cable protection without requiring complete cable replacement.
Environmental Sealing and Mechanical Protection
Once installed, Heat Shrink Repair Sleeves create a durable protective layer that helps shield repaired cable sections from moisture, dust, contaminants and mechanical stress while maintaining insulation integrity.
Suitable for Power, Control and Communication Cables
Heat Shrink Repair Sleeves are commonly used on power cables, control cables, instrumentation cables, communication cables and industrial wiring systems across multiple industries.
Applications Across Utilities and Industrial Sectors
Heat Shrink Repair Sleeves are widely used by power utilities, telecom operators, industrial facilities, infrastructure projects, EPC contractors and maintenance teams throughout India and international export markets.
Why Choose Amar Industries Heat Shrink Repair Sleeves
Amar Industries offers dependable product quality, technical expertise, customized solutions and reliable supply of cable protection and insulation products for demanding electrical applications worldwide.
Frequently Asked Questions - Heat Shrink Repair Sleeve
What is a Heat Shrink Repair Sleeve used for?
A Heat Shrink Repair Sleeve is used to repair damaged cable jackets, restore insulation protection and provide environmental sealing for cable systems.
Why use a Heat Shrink Repair Sleeve instead of replacing a cable?
A Heat Shrink Repair Sleeve provides a cost-effective repair solution that helps restore cable protection without the need for complete cable replacement.
Which types of cables can be repaired using Heat Shrink Repair Sleeves?
Heat Shrink Repair Sleeves can be used on power cables, control cables, communication cables, instrumentation cables and various industrial cable systems.
Do Heat Shrink Repair Sleeves provide moisture protection?
Yes, Heat Shrink Repair Sleeves help protect repaired cable sections against moisture, dust and environmental contaminants.
Can Heat Shrink Repair Sleeves be used outdoors?
Yes, Heat Shrink Repair Sleeves are suitable for indoor and outdoor cable repair applications depending on operating conditions and installation requirements.
Which industries use Heat Shrink Repair Sleeves?
Heat Shrink Repair Sleeves are widely used in power distribution, telecommunications, industrial manufacturing, infrastructure projects and utility maintenance operations.
Does Amar Industries export Heat Shrink Repair Sleeves internationally?
Yes, Amar Industries supplies Heat Shrink Repair Sleeves to customers throughout India and international export markets across multiple regions worldwide.
Can Amar Industries provide customized Heat Shrink Repair Sleeves?
Yes, Amar Industries can provide customized Heat Shrink Repair Sleeves based on cable dimensions, specifications and application requirements.
